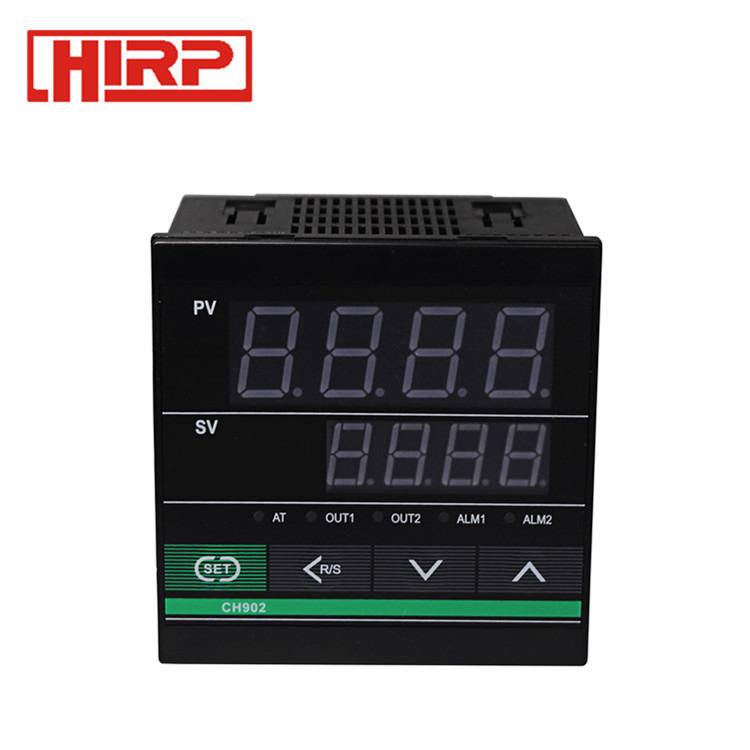

Industrial Intelligent Digital Display Din PID Temperature Controller For Bakery Oven

5 Pieces
MOQ
Industrial Intelligent Digital Display Din PID Temperature Controller For Bakery Oven
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: CH902
Usage: Industrial
Theory: Temperature controller
Accuracy: 0.1
Temperature range: 0-1820
Color: Black
Material: ABS, fire retarded
Certificate: CE ROHS
Power supply: 80~264VAC or 24VDC/AC
FREQUENCY: 50-60HZ
Dimensions: 96*96*75(mm)
Installation size: 92*92(mm)
Input: K/E/J/S/PT100/Cu50 selectable
Output: Relay and SSR
Βασικές πληροφορίες
Πιστοποίηση: CE ROHS
Model Number: CH902
Πληρωμής & Αποστολής Όροι
Packaging Details: 1 pcs per individual packing 120 per master carton
Supply Ability: 10000 Piece/Pieces per Month
Περιγραφή προϊόντων
Product Description

Characteristic:
Working voltage: 220V ac (customization is acceptable)
Temperature measuring range: 0-400℃ (Special items can make 0-1820℃)
Alarms: can be set freely full measuring range
Accuracy of instrument: +/-1%
Input type: K/E/J/S/PT100/Cu50 selectable
Output: relay and solid state relay(SSR) dual output/4-20mA selectable

Digital intelligent PID Temperature Controller CH102 CH 402 CH502 CH702 CH902.

CH series PID temperature controller is developed based on plastic and rubber machinery applications. It's suitable for skin packing machine, packing machine, film making machine, bag making machine or vulcanizing machine. It has good performance on Laundry washing machine, too. Original parameter setting with fuzzy control enables CH series controller to deal with most of plastic machine applications, which is easy and convenient.
Model Number
Outline Dimension (mm)
Installation Dimension(mm)
CH102
48*48*80 mm
45*45 mm
CH402
48*96*75 mm
45*92 mm
CH502
96*48*75 mm
92*45 mm
CH702
72*72*75 mm
68*68 mm
CH902
96*96*75 mm
92*92 mm
Model number
CH Series
Accuracy
RTD input: ±0.5%FS±1°C, Others input: ±1%FS±1°C
Supply voltage
85-265Vac, 50/60 Hz; 24Vdc/ac
Input types
Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
RTD: Pt100, JPt100
Voltage: 0-5V, 1-5V
Current: 0-20mA, 4-20mA
Output types
Electromagnetic relay, SSR, current, voltage, SCR (not in one product, need to select). Default is 1pcs, if 2pcs, need to be customized
Power consumption
AC100-240V: under 10VA; AC24V: under 5VA; DC24V: under 160mA
Control method
PID Control (with auto-tuning) or Self-tuning, or ON/OFF
Setting method
Touch switch
Indication method
8-segment 4-digital display and LED indication
Alarms
1. Alarm quantity: Default is 1pcs, if 2pcs, need to be customized
2. Alarm form: N: No alarm
A: Deviation low
C: Deviation high/low
D: Band
E: Deviation high with hold action
F: Deviation low with hold action
G: Deviation high/low with hold action
H: Process high
J: Process low
K: Process high with hold action
L: Process low with hold action
Operating temperature
0 to 50 °C (32 to 122 °F)
Operating humidity
45-85% RH max, non-condensing
Alias name
CH series pid temperature controller, intelligent temperature controller
Detailed Images


High Precision Chip--The Core of Temperature Cotroller

Highly Sensitive, Control Temperature Precisely


Double Display Digital Pannel


HD Digital Tube Display



Removable Shell

Alegant Appearance, Fine Workmanship

Packing & Delivery

1.Packaging: Export Carton,or as your request.

2.Shipping Methods: By air or by sea(FOB port:Ningbo/Shanghai), by express (DHL,UPS,TNT,FEDEX).
